Description

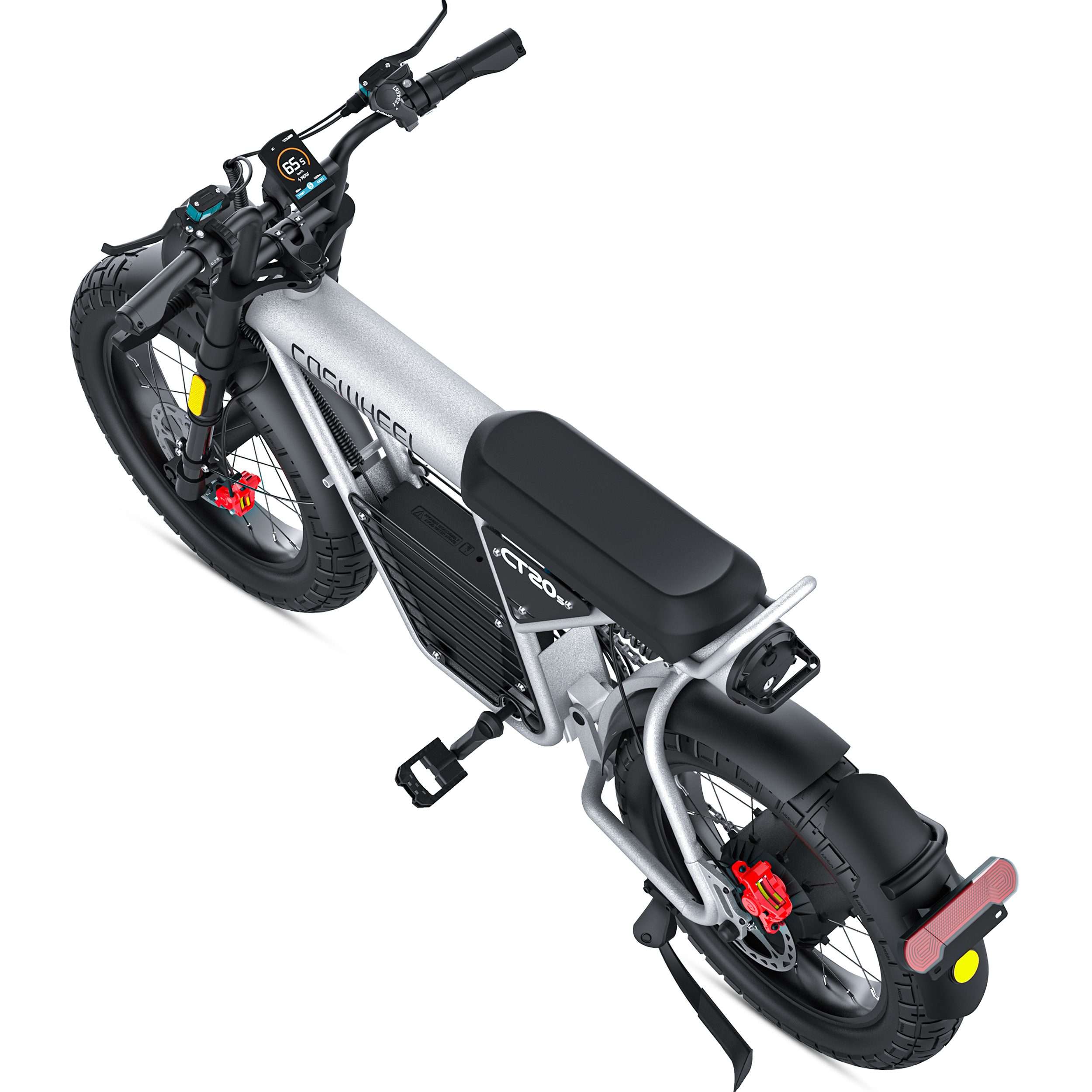

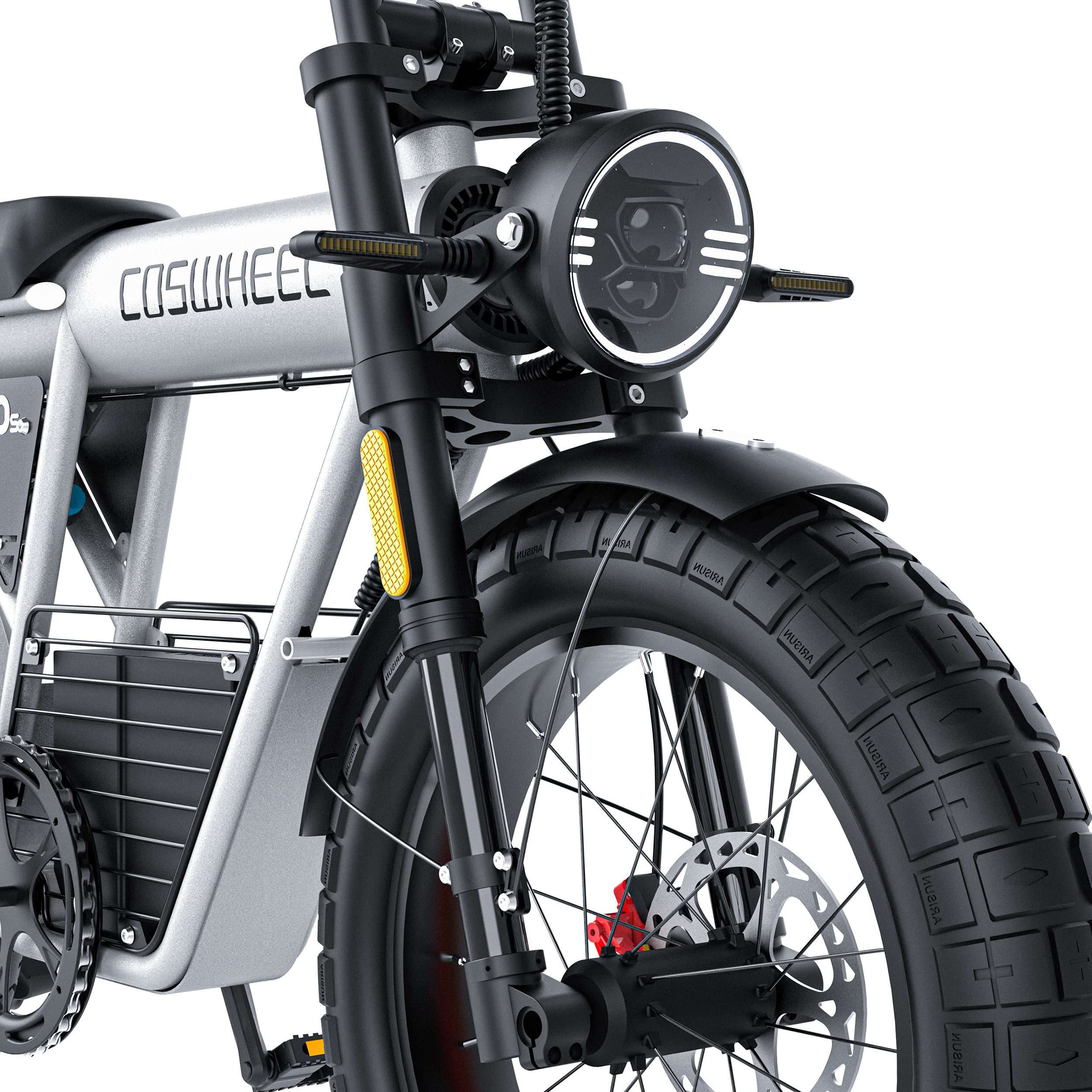

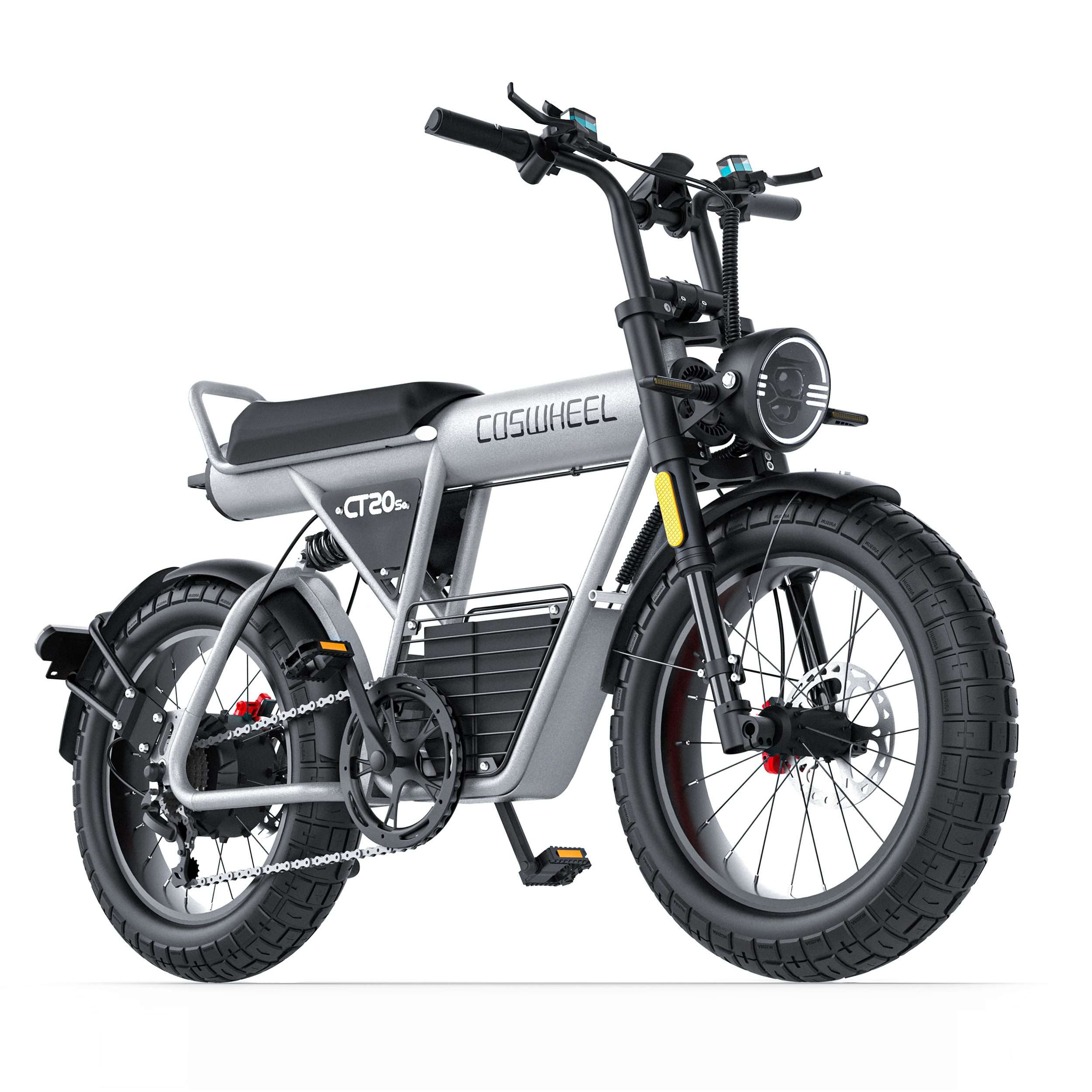

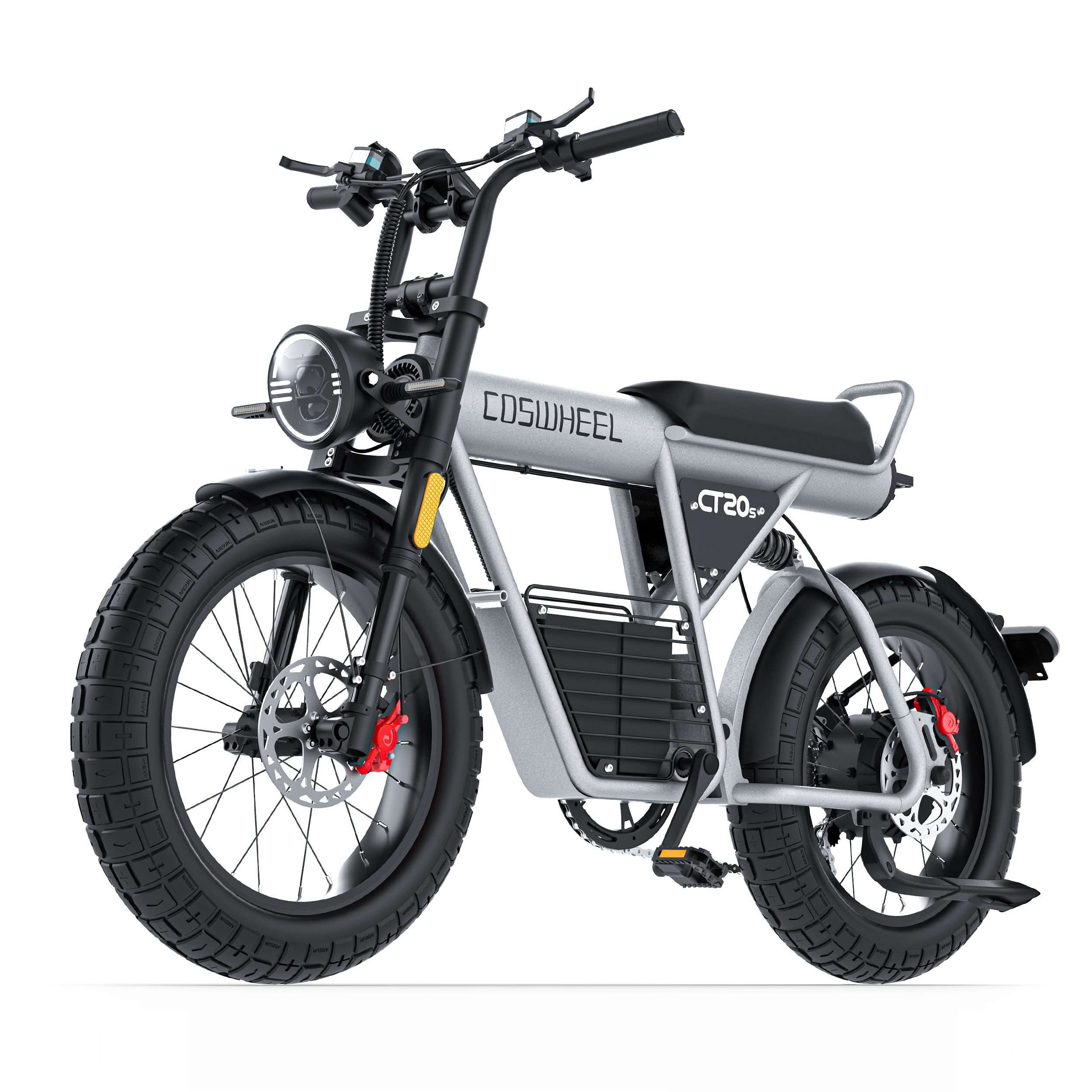

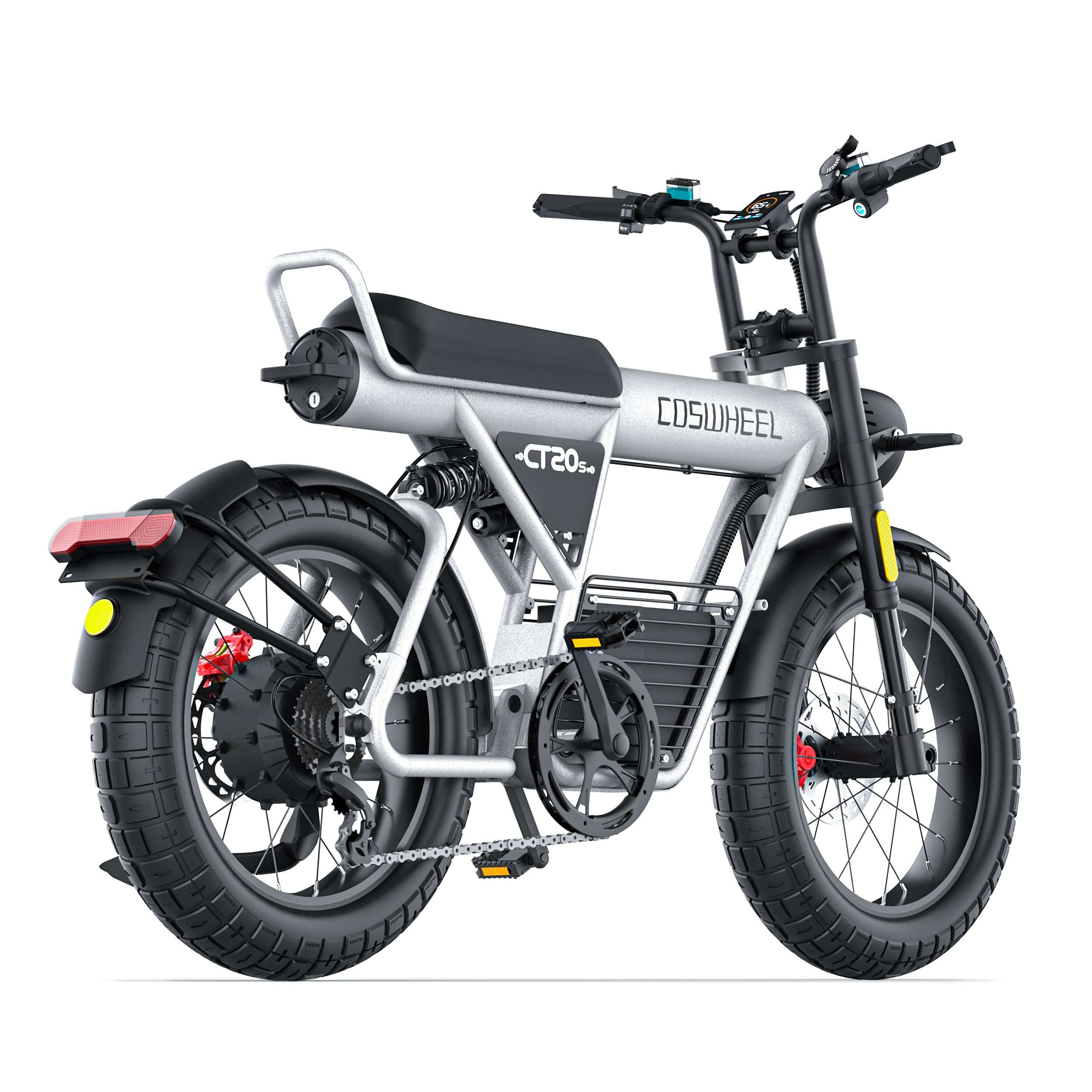

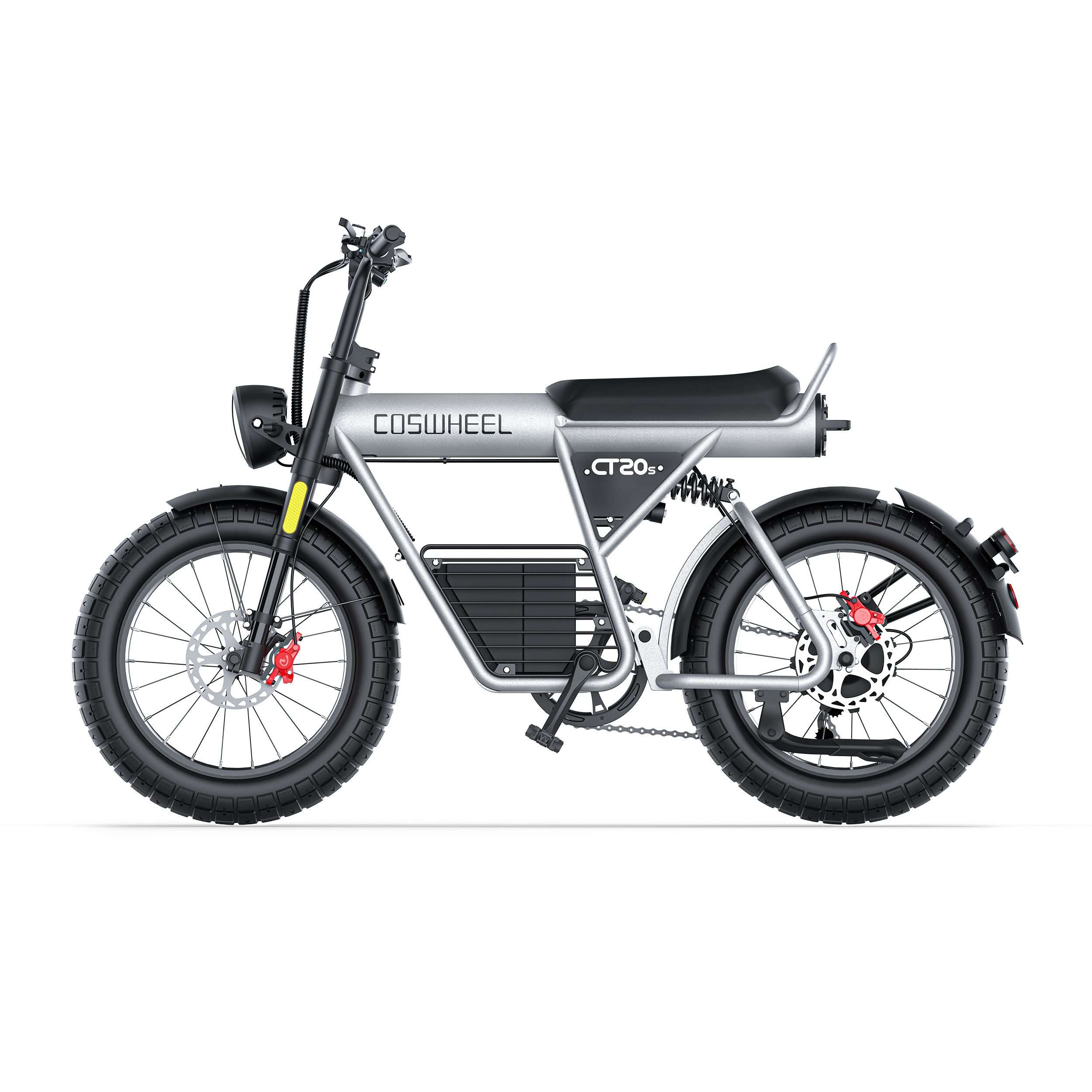

The COSWHEEL CT20S Electric Bike is the high-performance evolution of the CT20 family, engineered for riders seeking greater power, speed, and all-terrain capability. Featuring a powerful 60V brushless motor system with up to 2000W peak output, the CT20S delivers exceptional acceleration, hill-climbing performance, and long-range riding. Built with a durable 6061 aluminum alloy frame, full suspension system, and oversized 20" × 5" fat tires, it provides comfort and stability across city streets, gravel roads, trails, sand, and snow. With its motorcycle-inspired styling, removable lithium battery, hydraulic braking system, and Shimano 7-speed drivetrain, the CT20S is designed for both daily commuting and adventure riding.
Features
- Peak 2000W brushless rear hub motor (1500W rated)
- Up to 120 N.m torque for powerful acceleration and climbing

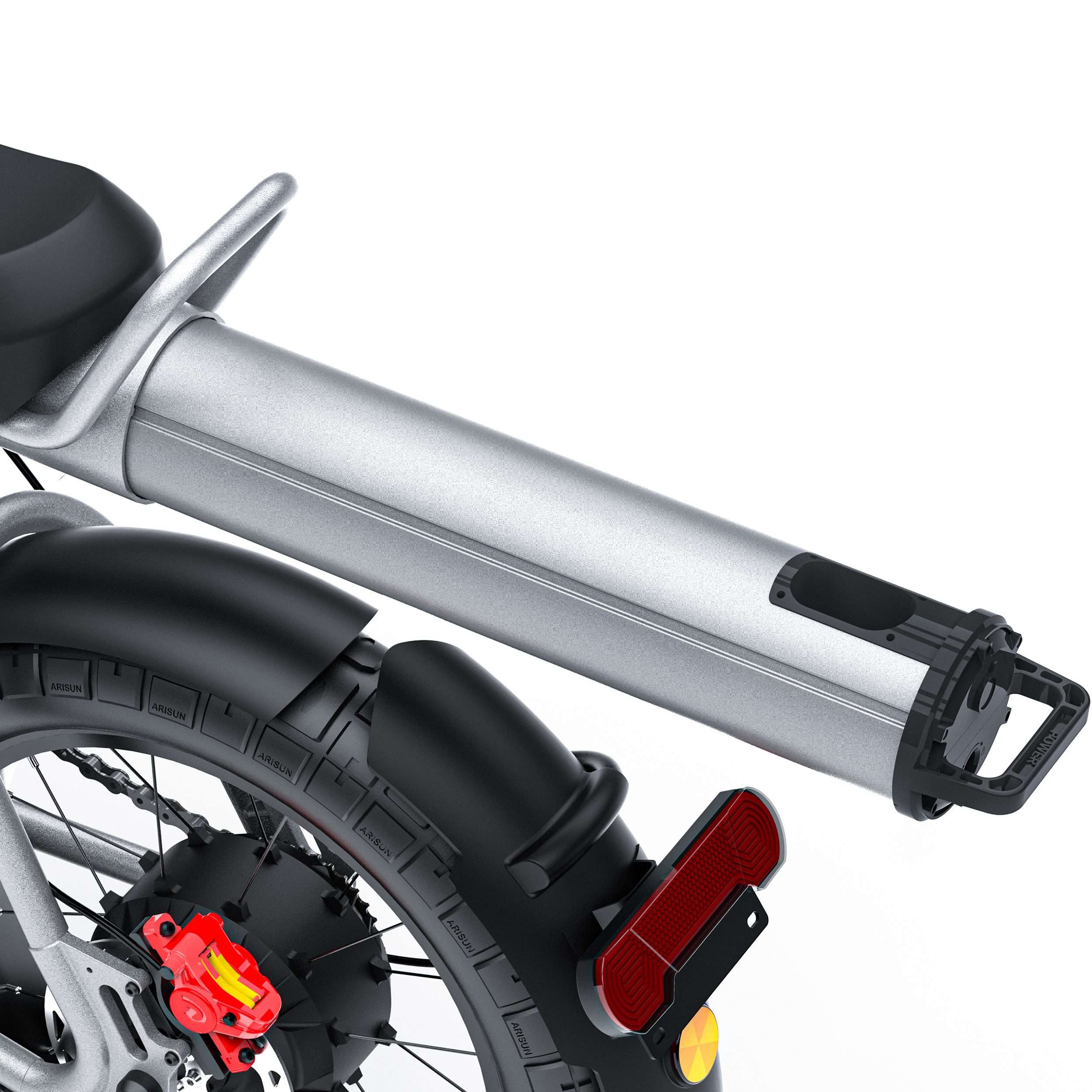

- Removable lithium battery options up to 60V 27.5Ah
- Top speed up to 40 mph (65 km/h)
- Riding range up to 120 km per charge
- Full suspension system with 180mm rear suspension travel
- 20" × 5" all-terrain fat tires

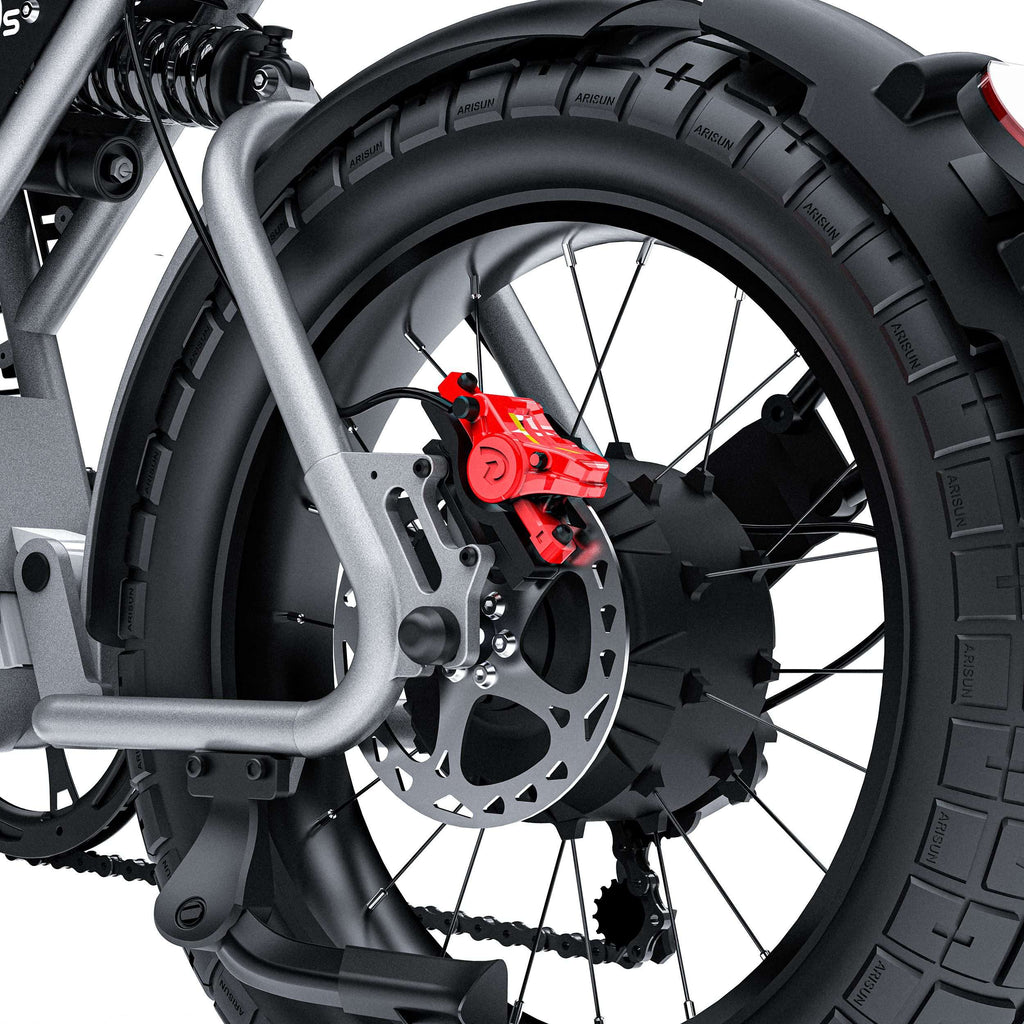

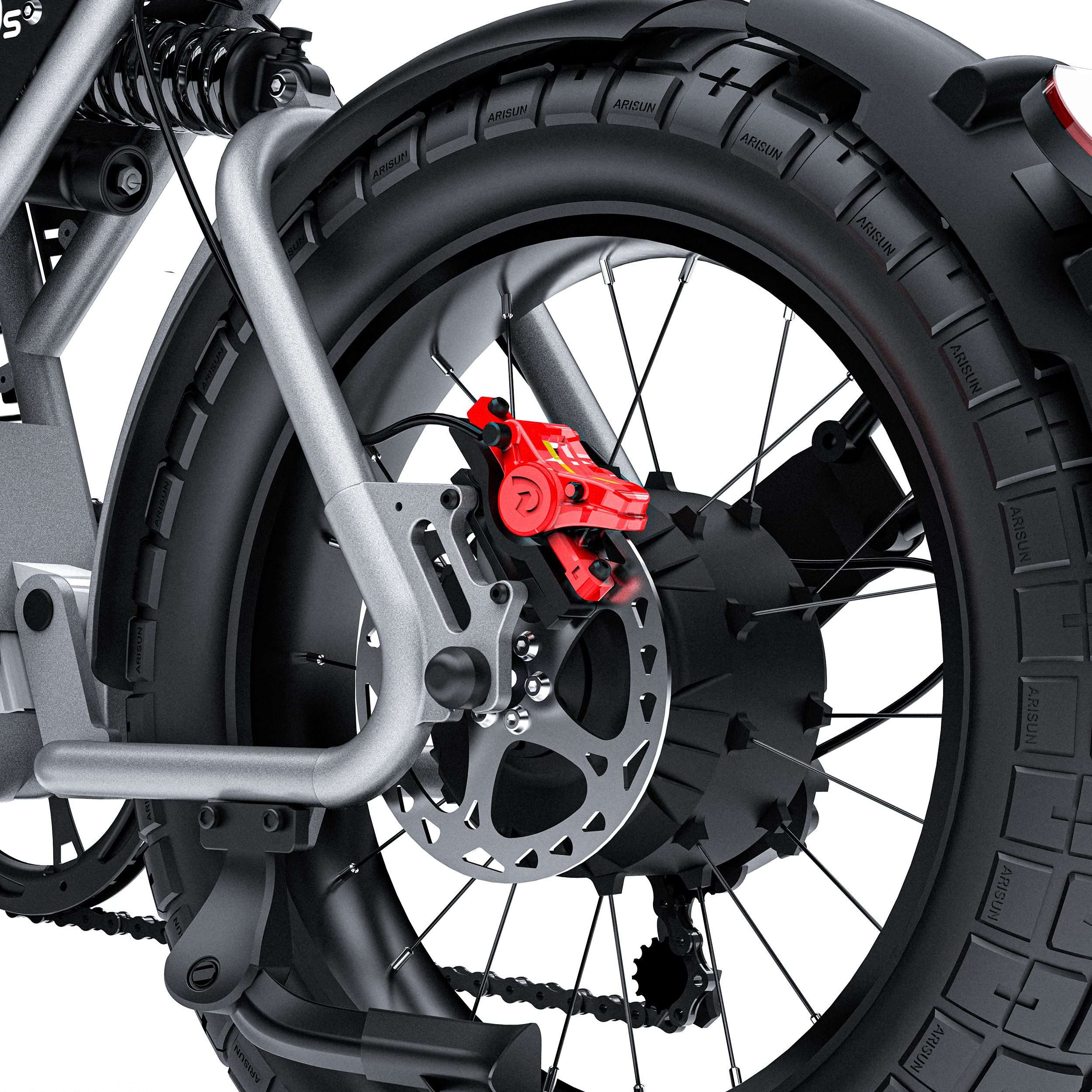

- Dual hydraulic disc brake system
- Shimano 7-speed transmission
- 5-level pedal assist system

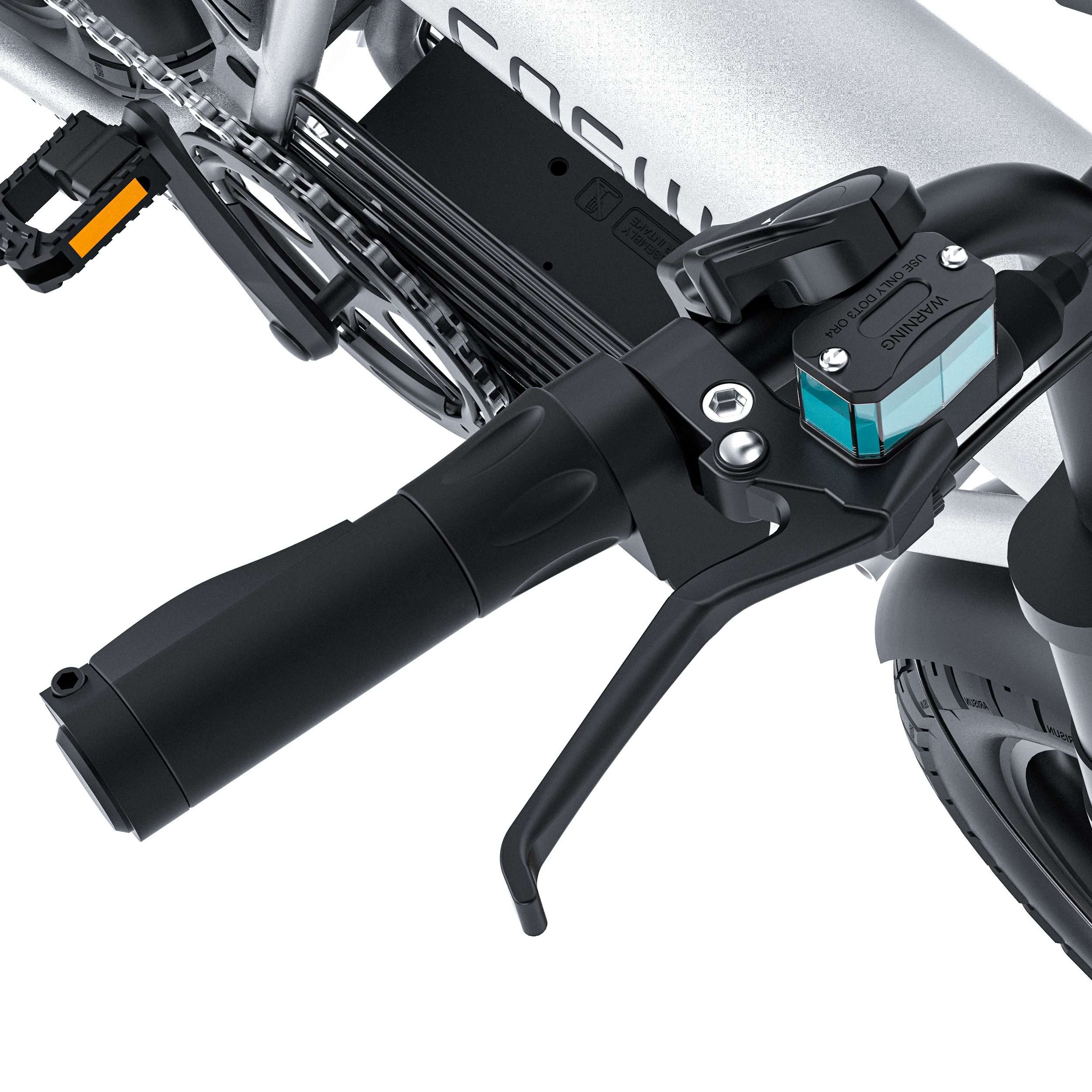

- Twist throttle control

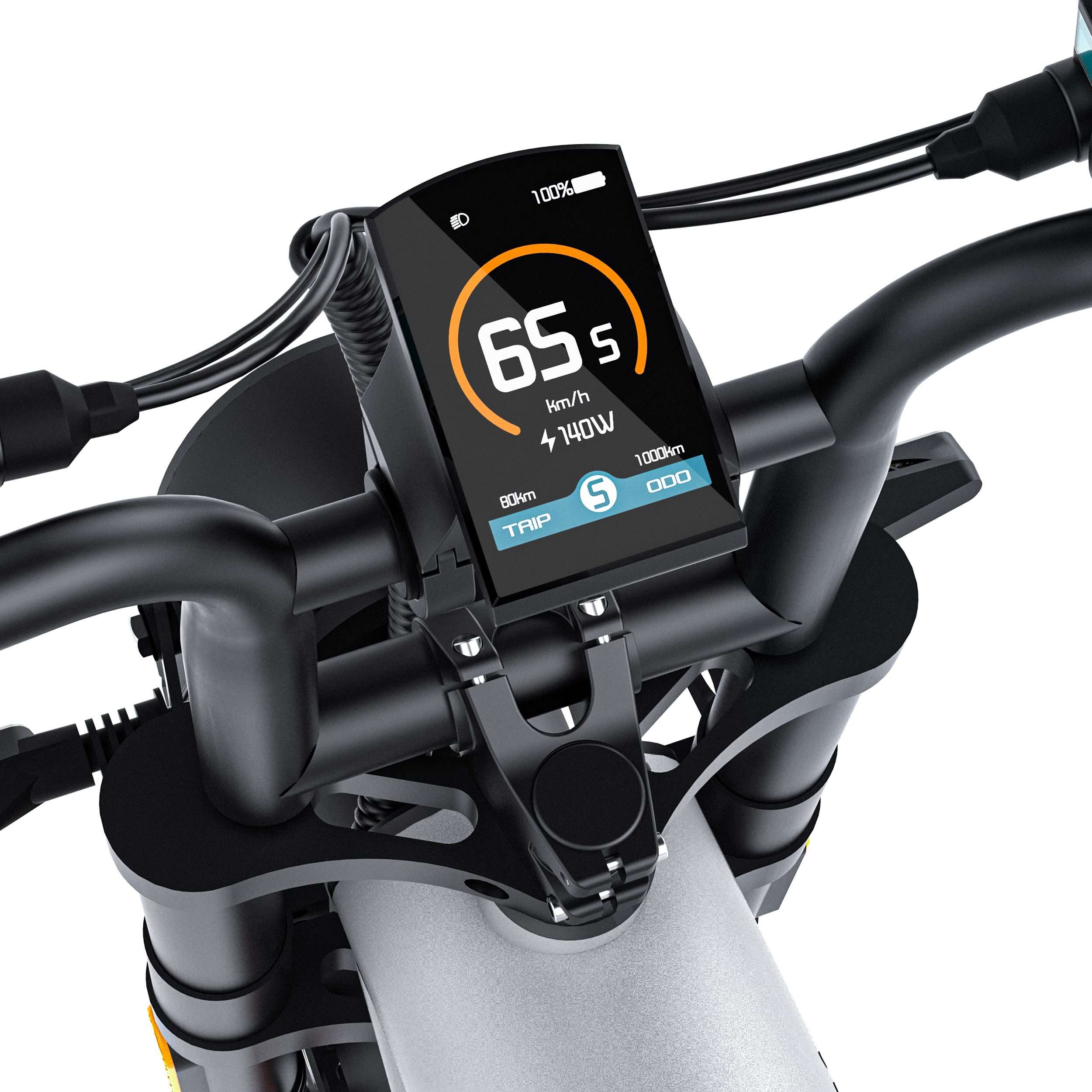

- LCD display with speed, battery status, and diagnostics

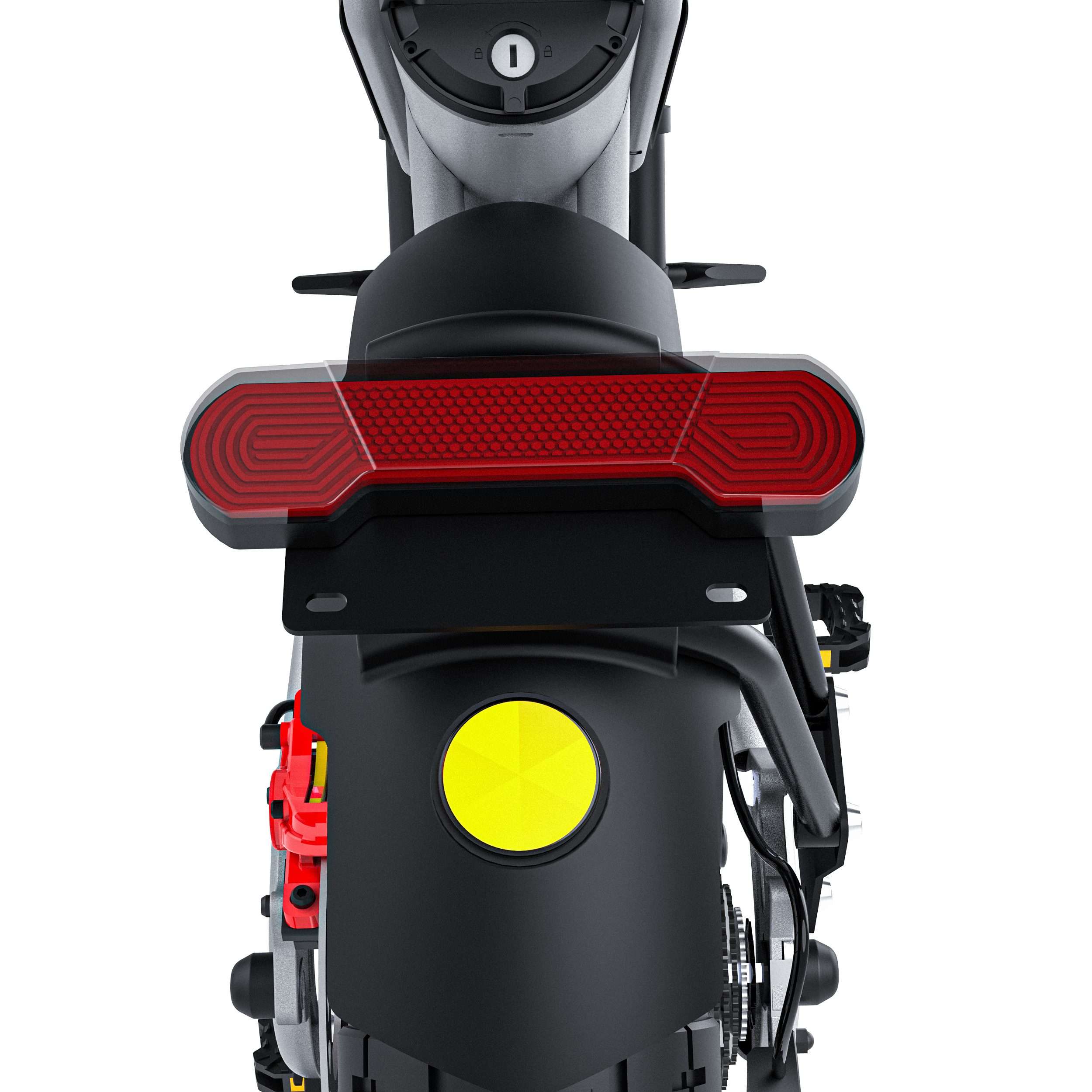

- Front LED headlight and rear lighting system
- Suitable for road, trail, snow, and off-road riding
- Maximum climbing ability of 35°
Specifications
| Specification | Details |
|---|---|
| Model | COSWHEEL CT20S |
| Product Type | Electric Fat Tire Bike |
| Frame Material | 6061 Aluminum Alloy |
| Motor Type | DC Brushless Rear Hub Motor |
| Motor Power | Peak 2000W (Rated 1500W) |
| Rated Voltage | 48V / 60V |
| Torque | 80–120 N.m |
| Battery Type | 18650 Lithium Battery |
| Battery Capacity | 48V 25Ah / 48V 35Ah / 60V 27.5Ah |
| Transmission | Shimano 7-Speed |
| Pedal Assist Levels | 5 |
| Throttle | Twist Throttle |
| Tire Size | 20" × 5" Fat Off-Road Tires |
| Suspension | Front Suspension + Rear Suspension (180mm Travel) |
| Brakes | Dual Hydraulic Disc Brakes |
| Top Speed | 65 km/h (40 mph) |
| Riding Range | 80–120 km (50–75 miles) |
| Climbing Ability | 35° |
| Charging Time | 7–12 Hours |
| Display | LCD Display |
| Maximum Load Capacity | 200 kg (441 lbs.) |
| Safe Load Capacity | 120 kg (265 lbs.) |
| Net Weight | 45 kg (99 lbs.) |
| Overall Dimensions | 1800 × 600 × 1150 mm |
| Package Dimensions | 1460 × 390 × 860 mm |
| Operating Temperature | -10°C to 40°C |
| Storage Temperature | -10°C to 40°C |
